POETTINGER

EQUIPMENT THAT WORKS HARD AS YOU DO

Buckeye Farmers is proud to offer these products as well as the entire line from the Poettinger Catalog.

SEARCH tedders PRODUCT LINE

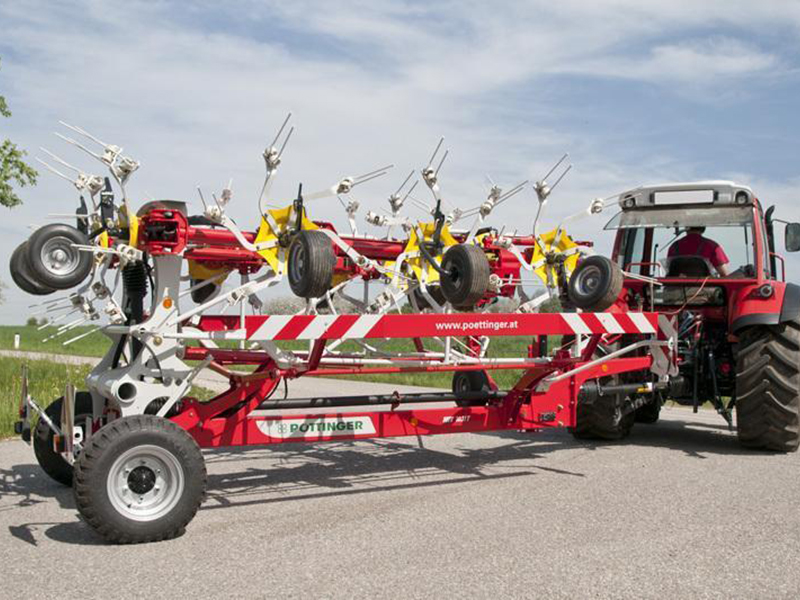

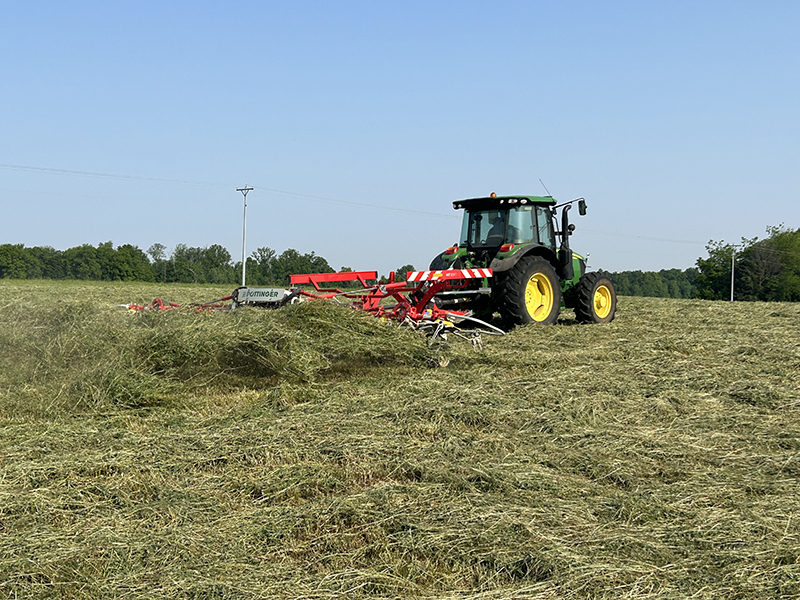

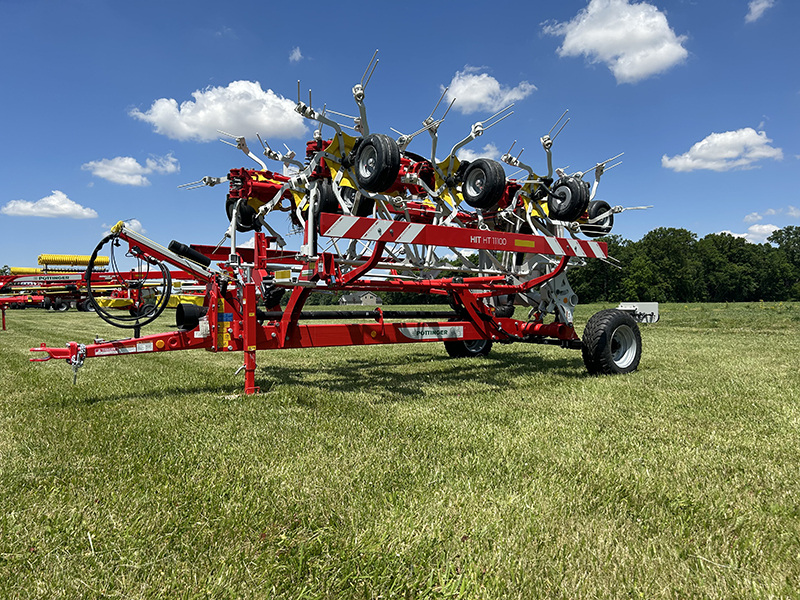

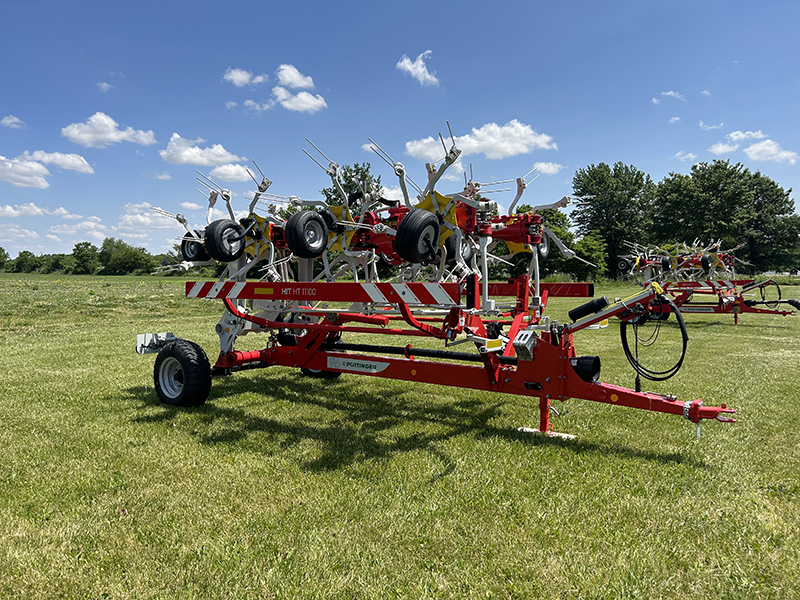

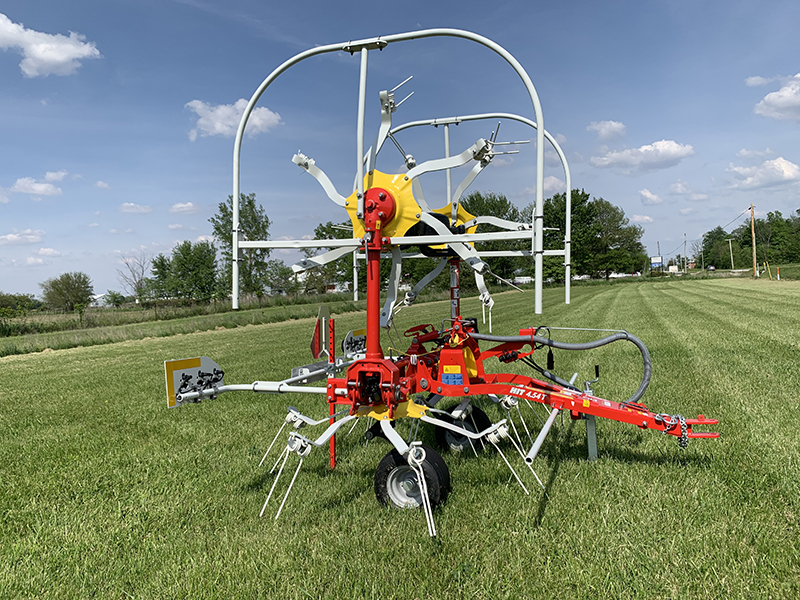

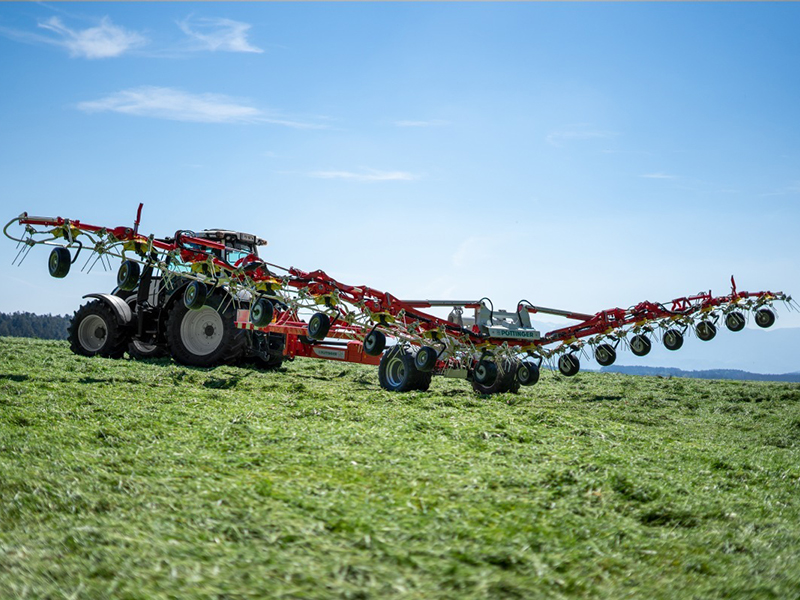

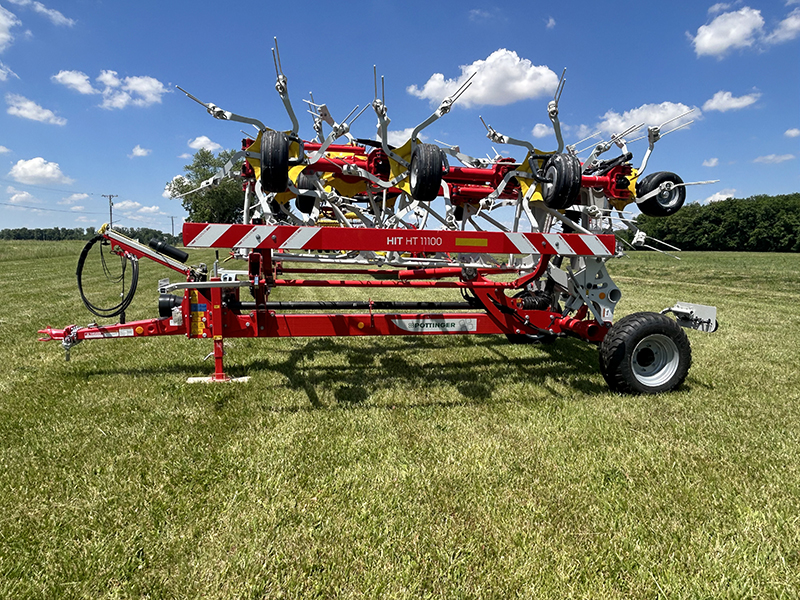

HIT T tedders

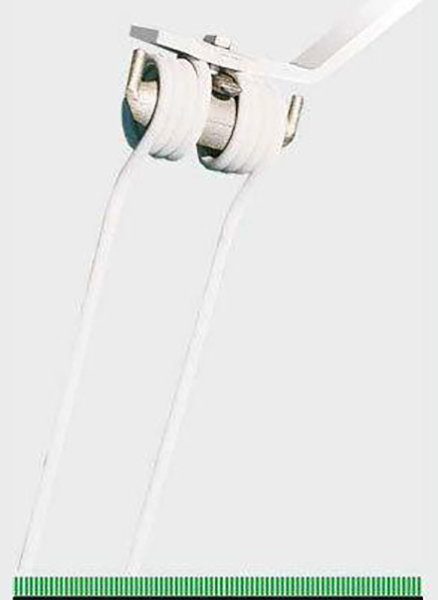

Poettinger’s HIT T tedders are manufactured with these objectives in mind: strength, reliability, and high functionality. The HIT T tedders run 4x more clean because of unique swept tine arm design. The 10 ply multitask tires allow for ground hugging in all terrains. The small rotor diameters guarantee clean forage pick-up. The HIT T tedders are the heaviest built tedders on the market assuring longevity. All of the tedders, no matter the size are narrow transport. The Poettinger HIT T tedders come standard with hydraulic fold and pitch.

  • Ground hugging and uniform spreading quality
  • Range in size from a 4 rotor to a 12 rotor tedder
  • Working widths of 17.5 ft to 42 ft.
  • Durable and Reliable
  • Min. of 45 HP
Product Brochure

For product specifications and options, download the PDF
Width Working width
DIN
Rotors Rotor Diameter Tine Arms per Rotor Transport Width Parking Height Transport Length Hydraulic
Connections
Weight
HIT 4.47 15.42 ft/4.70 m 14.44 ft/4.40 m 4 4.66 ft/1.42 m 6 8.20 ft/2.50 m 7.38 ft/2.25 m - 1 S 1157 lbs/525 kg
HIT 4.54 17.72 ft/5.40 m 14.06 ft/5.20 m 4 5.48 ft/1.67 m 6 9.35 ft/2.85 m 8.53 ft/2.60 m - 1 S 1213 lbs/550 kg
HIT 4.54 T 17.72 ft/5.40 m 14.06 ft/5.20 m 4 5.48 ft/1.67 m 6 9.35 ft/2.85 m 8.53 ft/2.60 m - 1 S 1411 lbs/640 kg
HIT 6.61 19.69 ft/6.0 m 18.86 ft/5.75 m 6 4.27 ft/1.30 m 5 8.37 ft/2.55 m 9.74 ft/2.97 m - 1 S 1331 lbs/785 kg
HIT 6.69 22.47 ft/6.85 m 21.16 ft/6.45 m 6 4.66 ft/1.42 m 6 9.84 ft/3.0 m 10.99 ft/3.35 m - 1 S 1885 lbs/855 kg
HIT 6.80 25.75 ft/7.85 m 24.45 ft/7.45 m 6 5.48 ft/1.67 m 6 9.84 ft/3.0 m 12.24 ft/3.73 m - 1 S 2072 lbs/940 kg
HIT 6.80 T 25.75 ft/7.85 m 24.45 ft/7.45 m 6 5.48 ft/1.67 m 6 9.84 ft/3.0 m 12.24 ft/3.73 m - 1 S 2293 lbs/1040 kg
HIT 8.81 25.62 ft/7.81 m 25.26 ft/7.70 m 8 4.27 ft/1.30 m 5 9.65 ft/2.94 m 9.42 ft/2.87 m - 1 D 2403 lbs/1090 kg
HIT 8.91 29.07 ft/8.86 m 28.22 ft/8.60 m 8 4.66 ft/1.42 m 6 9.84 ft/3.0 m 10.70 ft/3.26 m - 1 D 2756 lbs/1250 kg
HIT 8.91 T 29.07 ft/8.86 m 28.22 ft/8.60 m 8 4.66 ft/1.42 m 6 9.84 ft/3.0 m 10.70 ft/3.26 m - 1 D 3329 lbs/1510 kg
HIT 8.9 T 29.07 ft/8.86 m 28.22 ft/8.60 m 8 4.66 ft/1.42 m 6 9.51 ft/2.90 m 8.86 ft/2.70 m 18.37 ft/4.40 m 1 S/1 D 3858 lbs/1750 kg
HIT 10.11 T 36.09 ft/11.0 m 34.78 ft/10.60 m 10 4.66 ft/1.42 m 6 9.51 ft/2.90 m 8.86 ft/2.70 m 18.37 ft/5.60 m 1 S/1 D 4619 lbs/2095 kg
HIT 12.14 T 43.31 ft/13.20 m 41.67 ft/12.70 m 12 4.66 ft/1.42 m 6 9.51 ft/2.90 m 8.86 ft/2.70 m 18.37 ft/5.60 m 1 S/1 D 5236 lbs/2375 kg
