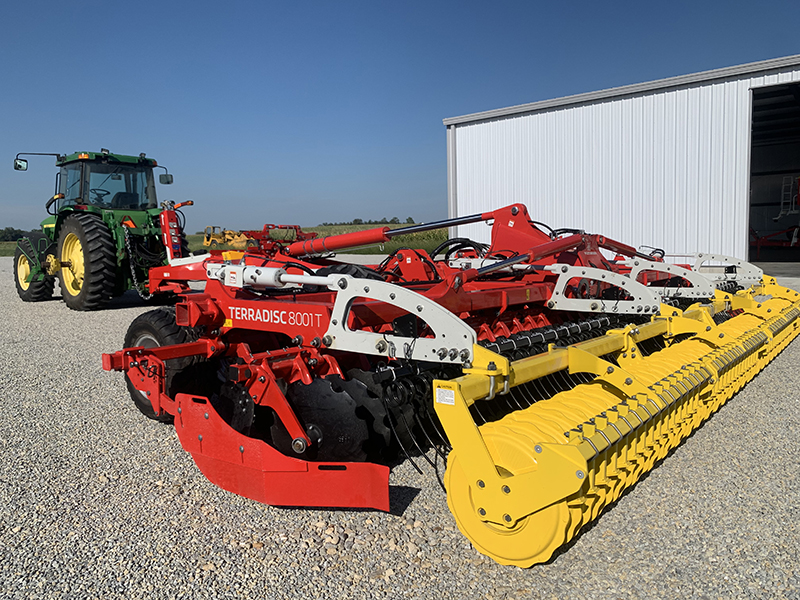

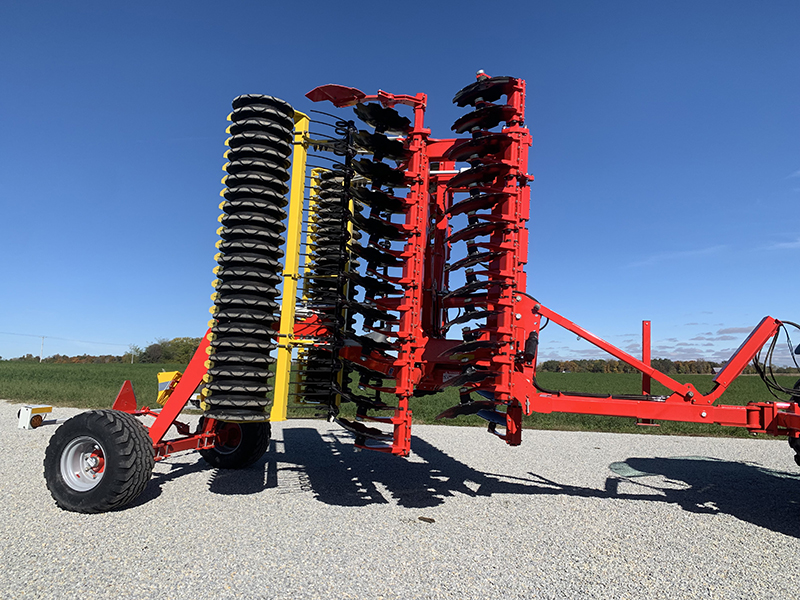

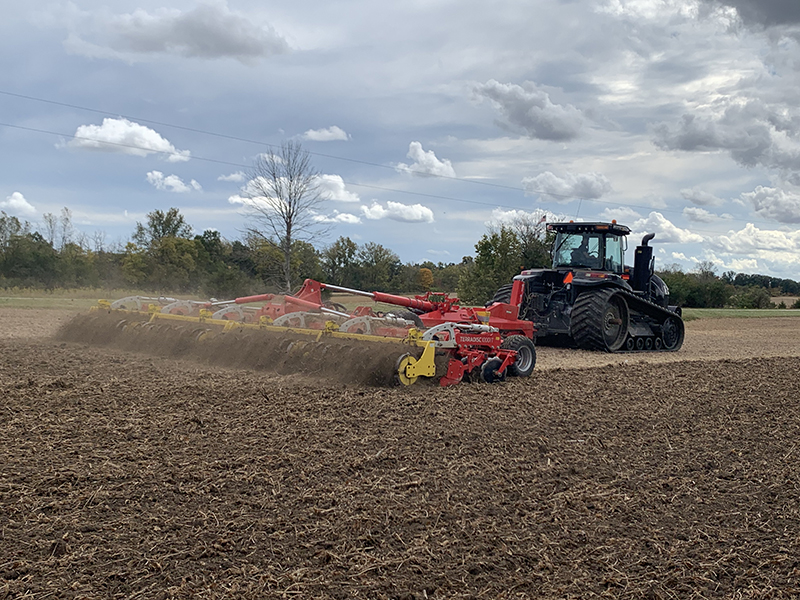

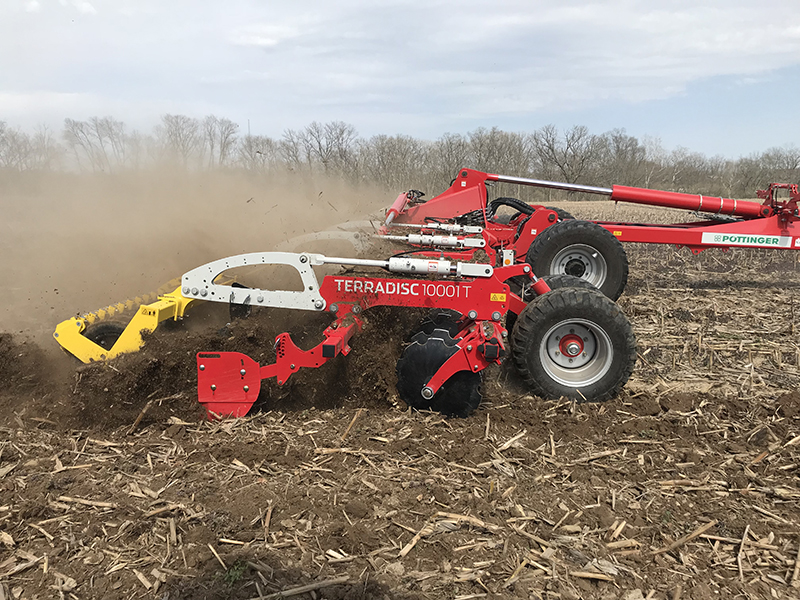

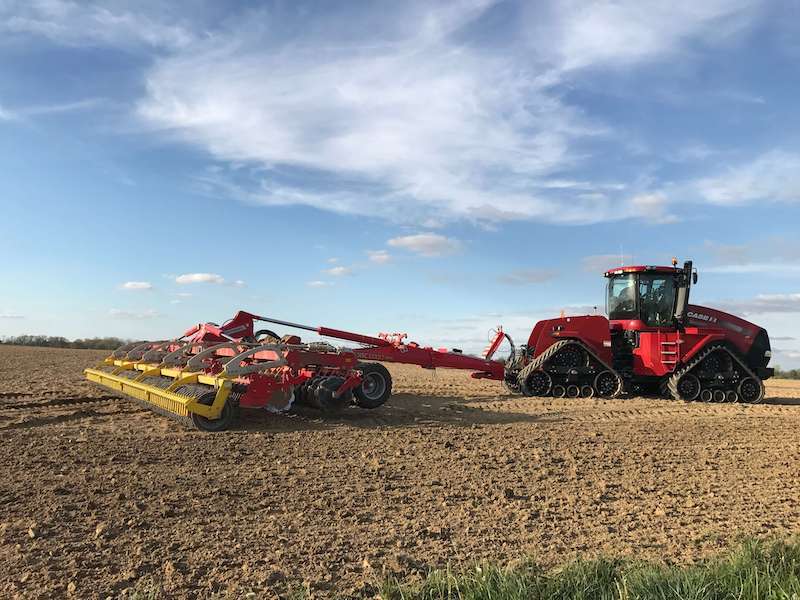

10001 T / 8001 T trailed disc harrows

The Terradisc is a trailed high speed, compact disc. It offers low maintenance and reliable penetration in heavy, hard and dry soils while thoroughly mixing in crop residues.

  • Residue-management machine
  • High speed specialist that averages 48 acres per hour
  • One-pass soil preparation

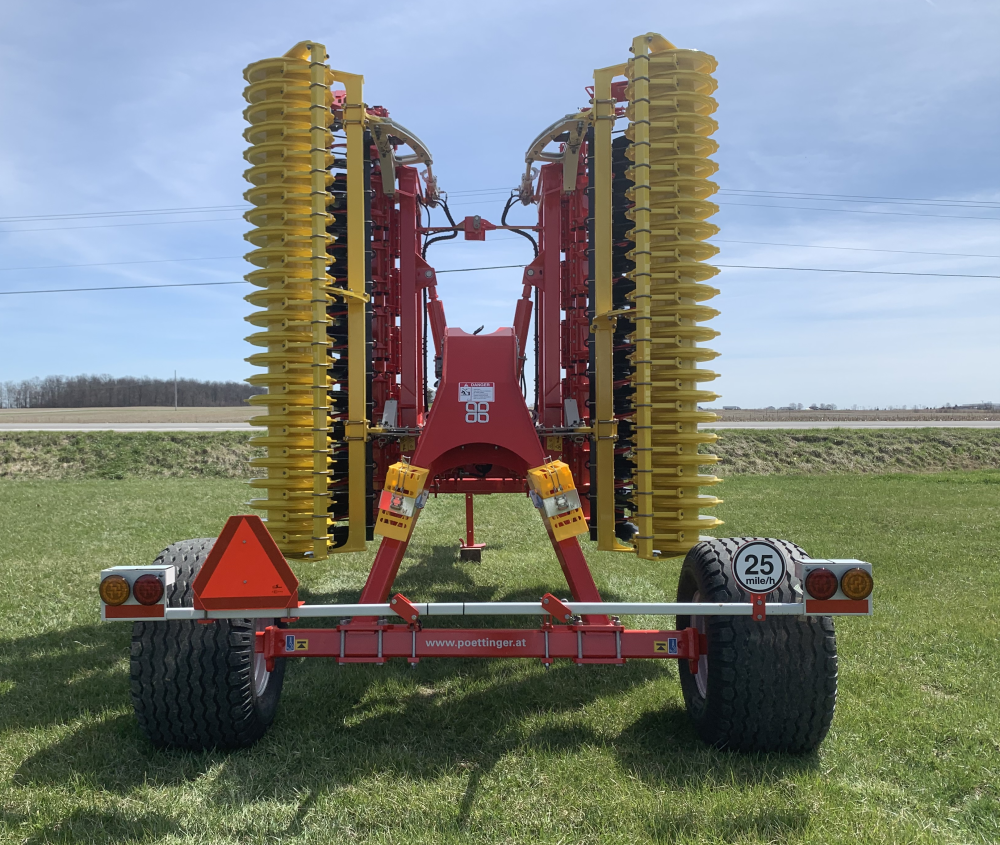

  • Under 10' transfer width
  • Eliminates compaction layers
  • NONSTOP protection against stones
Product Brochure

8001 T 10001 T
Working width 26.25 ft 32.81 ft
Transport width 9.84 ft 9.84 ft
Discs 64 80
Disc diameter 22.83 inch 22.83 inch
Disc spacing 4.92 inch 4.92 inch
Row spacing 35.43 inch 35.43 inch
Frame height 29.53 inch 29.53 inch
Power requirement from 198 kW / 270 hp 265 kW / 360 hp
Basic weight with roller approx. 20944 lbs 25353 lbs
Tractor size Min. of 360 HP

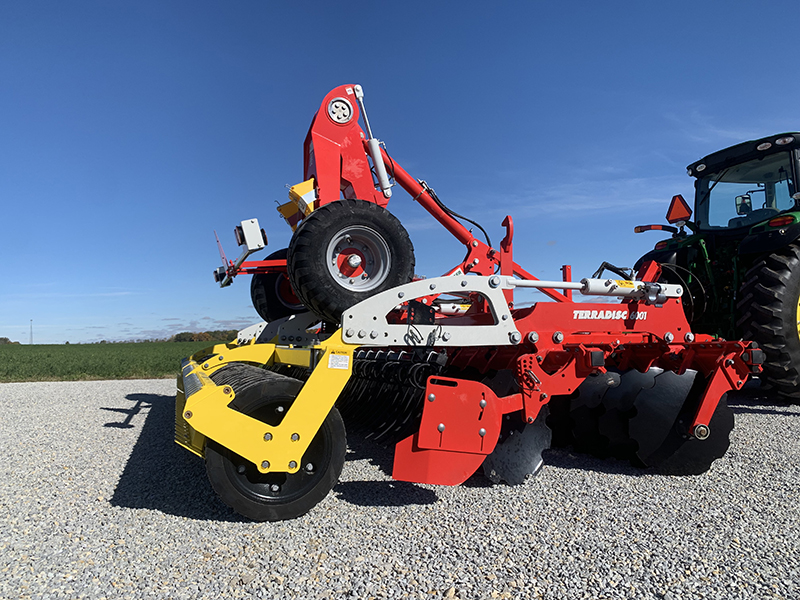

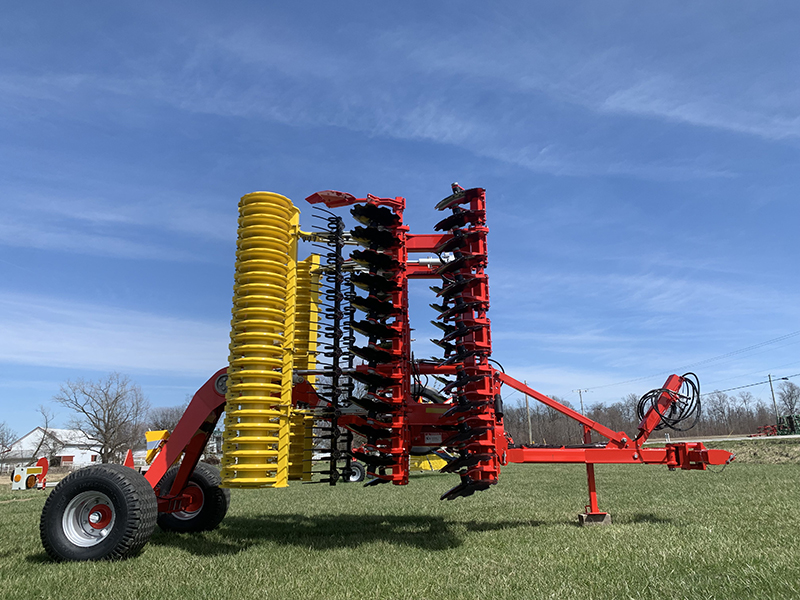

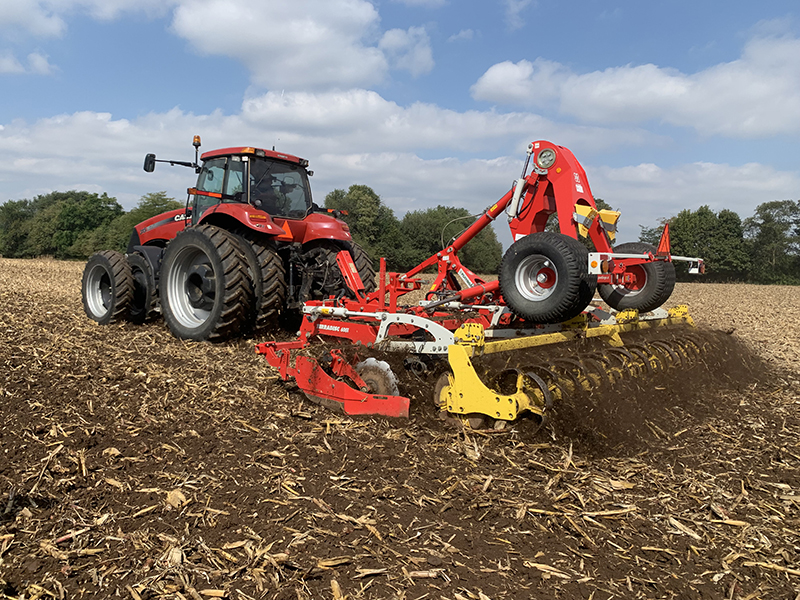

6001 T / 5001 T / 4001 T

6001 T / 5001 T / 4001 T

The Terradisc is a trailed high speed, compact disc. It offers low maintenance and reliable penetration in heavy, hard and dry soils while thoroughly mixing in crop residues. Perfect for smaller tractors

  • Residue-management machine
  • High speed specialist that averages 30 acres per hour
  • One-pass soil preparation
  • Under 10' transport width
  • Eliminates compaction layers
  • NONSTOP protection against stones
Product Brochure

TERRADISC 4001 T 5001 T 6001 T
Linkage Cat. 3 / 2 / 3 Cat. 3 / 2 / 3 Cat. 3 / 2 / 3
working width, ft/m 13.12 / 4.0 16.40 / 5.0 19.69 / 6.0
Transport width, ft/m 9.19 / 2.80 9.19 / 2.80 9.19 / 2.80
Discs 32 40 48
Disc diameter, inch/mm 22.83 / 580 22.83 / 580 22.83 / 580
Disc spacing, inch/mm 4.92 / 125 4.92 / 125 4.92 / 125
Disc bearings maintenance-free maintenance-free maintenance-free
Gang spacing, inch/mm 35.43 / 900 35.43 / 900 35.43 / 900
Frame height, inch/mm 29.52 / 750 29.52 / 750 29.52 / 750
Power requirement from 100 kW / 135 hp 100 kW / 135 hp 100 kW / 135 hp
Basic weight lbs/kg 8300 / 3765 8300 / 3765 8300 / 3765
Levelling harrows lbs/kg 200 / 91 238 / 108 253 / 115
Rear harrows lbs/kg - - -
Cage roller 21.26* / 540 mm - lbs/kg - - -
